Aluminum anode TYPE 15 - 8.46*3.7*1.18inch
Article: B210150
- Total length: 300mm/11.81in
- Width: 95mm/3.74in
- Height: 30mm/1.18in
- Hole distance: 265mm/10.43in
- Net weight: 1,2 kg/2,65lb
- Gross weight: 1.5kg/2.7lb
- Reinforcement: FE
PCS | Discount | Price |
---|---|---|
5 | 5 % | $34.20 /st |
10 | 10 % | $32.40 /st |
20 | 15 % | $30.60 /st |
50 | 20 % | $28.80 /st |
Product description
Product specification
15-AL
Material: Aluminum
Alloy : Beralin, Norsok
Article: B210150
- Net weight : 1.2 KG/2.65 lbs
- Gross weight: 1.5 KG/3.31 lbs
- Reinforcement/Insert: Steel

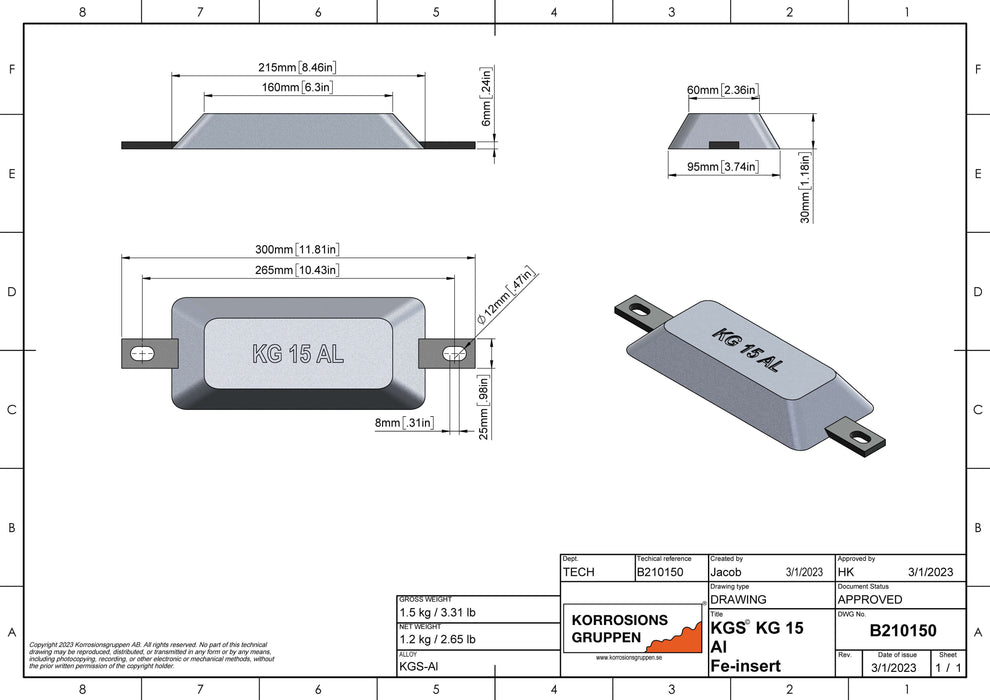

- Hole distance: 265mm/10.43 inch
- Bolt hole : 12x20mm/0.40x0.79 inch
- Total length: 300mm/11.81 inch
- Length: 215mm/8.46 inch
- Width: 95mm/3.74 inch
- Height: 30mm/1.18 inch
Application areas:
- Ship hull
- Port
- Slip
- Cable
- Pipeline
- Dykdalb
- Pump
- Pontoon
- Piers
- Pillar
Aluminum anodes are mainly used in seawater. Can also be used in brackish water if the resistivity is not too high (<1 Ωm).
When it comes to seawater, however, aluminum is more efficient & durable than zinc and magnesium. Compared to Zinc, it takes about 1/3 of the weight to protect the same surface. The efficiency of an aluminum anode is high, about 90%. All our anodes are die cast for the best quality.
Are you unsure of the type of material to use? Ask us, we can!
Technical data
- Capacity: 2,680 Ah / kg(1215.63 Ah / lbs)
- Consumption: 3.3 kg / A year(7.28 lbs / A year)
- Specific weight: 2.78 kg / dm³(6.13 lbs / dm³)
- Potential: -1 100 mV rel Ag / AgCl in seawater
Typical chemical composition, Norsok
Material% by weight
Zinc (Zn) min 2.5 max 5.75
Indium (In) min 0.015, max 0.04
Copper (Cu) max 0.003
Iron (Fe) max 0.09
Silica (Si) max 0.12
Kadmi. (CD) max 0.002%
Aluminum Residues
Information
Extend the lifespan of your marine investments, check the product description for more information.
